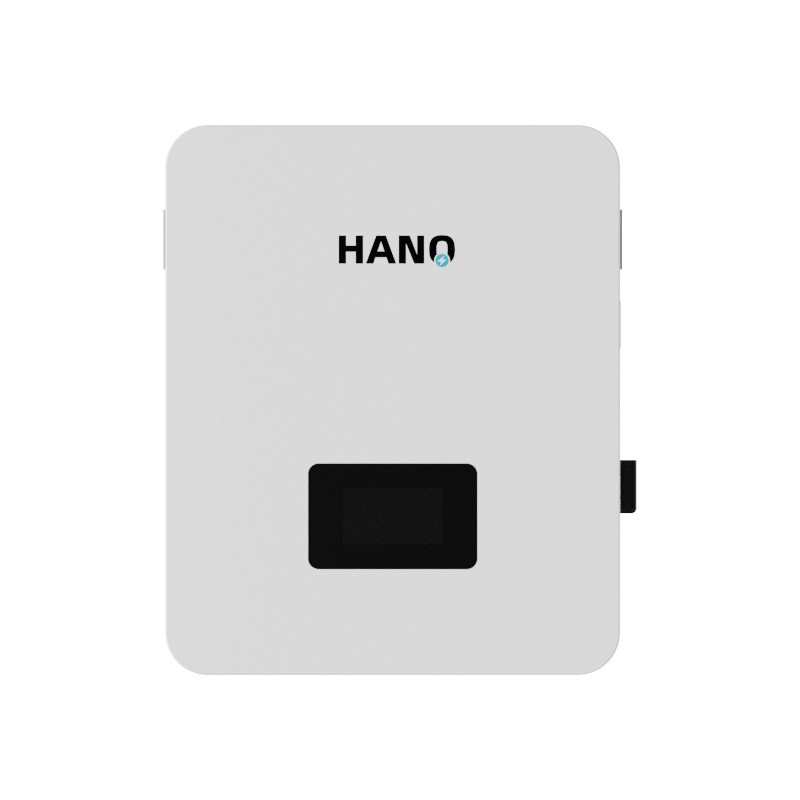

HANO HN8-B 8kWh Low Voltage Home Solar Energy Storage Lithium Battery Pack
Premium A-Grade Cells
High safety, eco-friendly, and built for a long cycle life.
Intuitive User Interface
Easy-to-use built-in screen for seamless monitoring and control.
Deep Customization
Tailored to your specific needs with flexible and easy expansion.
Parallel Operation
Supports connecting multiple batteries in parallel for expanded capacity.
- Overview
- Recommended Products
| Category | Parameter | Value |
| Model | LiFePO4 | HN8-B |
| Electrical Characteristics | Nominal Voltage | 25.6V |
| Nominal Capacity | 314Ah (Cs,25℃) | |
| Energy | 8038Wh | |
| Internal Resistance | ≤20mΩ | |
| Cycle Life | >6000 cycles @0.2C 100%DOD | |
| Months Self Discharge | <3% | |
| Standard Charge | Efficiency of Charge | 100% @0.2C |
| Efficiency of Discharge | 96~99% @1C | |
| Charge Voltage | 29.2 ± 0.2V | |
| Charge Mode | 0.2C to 29.2V, then 29.2V, charge current 0.02C (CC/CV) | |
| Charger Current | 150A | |
| Max. Charge Current | 200A | |
| Standard Discharge | Charge Cut-off Voltage | 29.6V ± 0.2V |
| Continuous Current | 150A | |
| Max. Pulse Current | 200A | |
| Environmental | Discharge Cut-off Voltage | 20V |
| Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity | |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP21 | |
| Mechanical | Cell & Method | 3.2V/314AH-8S1P |
| Case | Metal case | |
| Dimensions (W*D*H)(mm) | 430/250/520 | |
| Weight (lbs./kg.) | 63Kg | |
| Terminal | 200A through terminal | |
| Protocol (optional) | RS485/CAN | |
| BMS | 8S200A |
Main selling points
Our Wall Mounted Series offers versatile high-voltage and low-voltage stacking options, empowering users to freely customize battery capacity with exceptional scalability. Engineered with premium A-grade LiFePO4 cells, the system delivers a robust cycle life of over 6,000 cycles. It features a built-in BMS equipped with active balancing technology, which optimizes cell consistency and maximizes usable capacity while providing comprehensive safety protection. Supporting RS485, RS232, and CAN communication protocols, the system ensures seamless integration with various mainstream energy storage inverters to meet diverse user needs.
Brief selling points
Premium A-Grade Cells
High safety, eco-friendly, and built for a long cycle life.
Intuitive User Interface
Easy-to-use built-in screen for seamless monitoring and control.
Deep Customization
Tailored to your specific needs with flexible and easy expansion.
Parallel Operation
Supports connecting multiple batteries in parallel for expanded capacity.
Product Brief Introduction
The HANO HN8-B 8kWh Low Voltage Home Solar Energy Storage Lithium Battery Pack is a high-capacity, heavy-duty power infrastructure asset engineered for decentralized residential microgrids. Operating as an elite Low-Voltage Home Energy Storage System, the HANO HN8-B provides international solar distributors and EPC contractors with a robust 8.038kWh base block from a single unit. Built with certified A-Grade LiFePO4 Wall Mounted Battery cells (25.6V 314Ah), this system utilizes a premium 8S 200A BMS Protection Battery masterboard to handle massive current demands smoothly. Supporting modular configurations, it offers a reliable choice for scaling a highly stable Parallel Residential Lithium Battery Bank.
Comprehensive Product Description
For global wholesale suppliers and engineering teams, sourcing a home backup system that can handle sustained high-current draws without causing field balancing issues is a major operational priority. HANO developed the HANO HN8-B 8kWh Low Voltage Home Solar Energy Storage Lithium Battery Pack to completely eliminate common field headaches, including cell mismatch under heavy loads and complex multi-cabinet wiring layouts. This heavy-duty, wall-mounted steel enclosure gives procurement managers an adaptable platform to scale home power backups from a standalone 8.038kWh block into a massive, multi-unit Parallel Residential Lithium Battery Bank cluster.
On-site setup crews will appreciate how this Low-Voltage Home Energy Storage System simplifies labor and installation routines. It features a bright, integrated intuitive screen interface that provides real-time tracking of total voltage, individual cell balance, and historical error logs, removing the need for external diagnostic gear during site audits. HANO builds this Wall Mounted Solar Battery Pack with an industrial-grade open-protocol communication card supporting CAN, RS485, and RS232 protocols. This layout guarantees plug-and-play synchronization with mainstream hybrid energy storage inverters across different regional wholesale markets.
Key Structural Features
Flexible Capacity Scaling: Designed for effortless multi-unit parallel scaling. Installers can link and expand the Parallel Residential Lithium Battery Bank to match demanding energy layouts without modifying the site's main breaker boards.
Premium A-Grade Cells: Utilizing ultra-dense lithium iron phosphate chemistry, this A-Grade LiFePO4 Wall Mounted Battery delivers a robust cycle life of over 6,000 deep cycles at 100% Depth of Discharge (DOD) under 0.2C testing setups.
Heavy-Duty 200A Protection: Driven by a premium integrated 8S 200A BMS Protection Battery hub, the unit safely manages a 150A continuous charge/discharge output and easily absorbs a 200A maximum peak pulse stream.
Industrial-Grade Build Quality: The heavy metal case features an IP21 protection rating and high-current 200A through terminals, ensuring this rugged Wall Mounted Solar Battery Pack delivers lasting indoor structural safety.
Technical Advantages & Deep Expert Analysis
To see why the HANO HN8-B 8kWh Low Voltage Home Solar Energy Storage Lithium Battery Pack stands out as an exceptionally efficient commercial asset, look at the engineering data during its high-current discharge phases. Standard residential batteries often experience severe efficiency losses and voltage sag during heavy peak loads due to high internal resistance. HANO prevents this by maintaining an ultra-low internal resistance structure (≤20mΩ ) within this Low-Voltage Home Energy Storage System. This design keeps discharge efficiency between 96% and 99% under a full 1C discharge rate.Additionally, the master 8S 200A BMS Protection Battery module uses proactive active balancing technology. Instead of using basic passive resistors that burn off excess capacity as waste heat and create dangerous thermal hot spots inside the metal case, HANO implements active balancing circuitry. This architecture dynamically shifts charge across the 8S cell configuration (3.2V per cell in series), ensuring all 314Ah cells maintain identical voltage levels throughout heavy cycling. Working smoothly across a wide discharge thermal window of -20°C to 60°C, this advanced A-Grade LiFePO4 Wall Mounted Battery engineering helps solar firms cut down on post-installation truck rolls and warranty claims.
Target Scenario Applications
High-Demand Residential Solar: Ideal for larger properties and multi-story estates that need a high-capacity Wall Mounted Solar Battery Pack to store daytime solar energy and run heavy household appliances during grid outages.
Off-Grid Microgrid Backup: Functions as a highly responsive Parallel Residential Lithium Battery Bank cluster in rural locations or regions prone to storm blackouts and load shedding, keeping essential equipment running smoothly.
Commercial Peak Shaving: Allows small commercial spaces, workshop garages, and offices to charge this high-capacity Low-Voltage Home Energy Storage System during off-peak times and discharge it when utility rates surge.
B2B Commercial Value
For wholesale buyers, regional importers, and local solar installation firms, keeping warehouse operations lean while expanding project margins is crucial for success. Stocking the HANO HN8-B 8kWh Low Voltage Home Solar Energy Storage Lithium Battery Pack helps streamline your operations by eliminating typical SKU management headaches. Instead of carrying various standalone battery sizes, this high-capacity Low-Voltage Home Energy Storage System acts as a flexible 8kWh platform that scales easily to match diverse project requirements using a single, uniform SKU.
Because HANO uses an open, highly adaptable protocol firmware configuration, this clean Wall Mounted Solar Battery Pack integrates smoothly with the top hybrid inverters in global markets. Backed by solid internal manufacturing controls and robust engineering design parameters, HANO ensures your technical and importing compliance teams can fast-track local utility permits and pass customs inspections smoothly.
