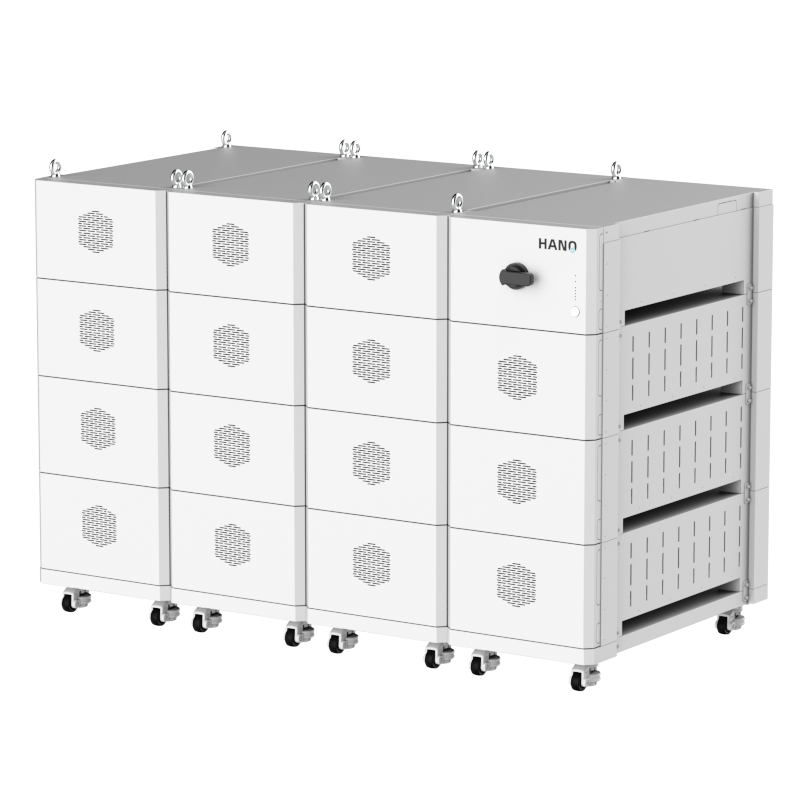

HANO HN-HVS10 Stackable High Voltage Home Energy Storage Battery(IP-20) 30.7kWh-153.6kWh ESS
Scalable Capacity: Supports 3-15 modules stacking (30.7 - 153.6kWh).
Long Cycle Life: ≥6,000 cycles @ 95% DOD (10+ Year Design Life).
High Safety Standard: Equipped with Aerosol Fire Extinguisher & IP20 Rating.
Broad Compatibility: Works with Deye, Solis, Growatt, Sofar, etc. (CAN/RS485).
Smart Connectivity: Built-in WiFi & App Support for Remote Monitoring.
Wide Temp Range: Discharging operation from -20°C to 55°C.
High Efficiency: 95% Depth of Discharge (DOD) maximizes usable energy.
- Overview
- Recommended Products
| Model | HN-HVS10 |
| Battery Type | LiFePO4 |
| Module Voltage/Capacity | 51.2V/205Ah |
| Single Module Weight | 85Kg |
| System Modules Serial Number | 3~15 |
| System Energy Range | 31.4~157.4kWh |
| Operating Voltage | 134~864V |
| Recommended Charge/Discharge Current | 100A (0.5C) |
| Max.Charge/Discharge Current | 200A (IC) |
| Peak Discharge Current(2min 25°C) | 220A(1.1C) |
| Depth of Discharge | 95% |
| Communication | CAN/RS485 |
| Cycle Life * | Unlimited cycles / 10 Years |
| Max. Single Cluster Dimension(W*D*H)(mm) | 1760 /700 / 1200~15 module |
| Charging Temp. Range | 0~55°C |
| Discharging Temp. Range | -20~55°C |
| Protection Level | IP20 |
| Fire Protection System | Aerosol fire extinguisher |
| Installation method | Stack type |
| Cooling method | FAN |
| WiFi Module | Built-in WiFi module; APP OTA function |
| Certification & Safety Standard | CE/ IEC62619 / IEC62040/UN38.3 |
| Compatible Inverters | Ingeteam/Solis/GoodWe/Growatt/Solplanet/SAJ/DEYE/Hoymiles/SOLINTEG ect. |
| * Test conditions: 0.2C Charging & Discharging. @25°C; 95% DOD | |
Detailed selling points
1. Flexible High-Voltage Stacking Architecture
Designed for scalability, the system supports stacking 3 to 15 modules. This allows users to freely customize their energy storage capacity ranging from 30.7 kWh up to 153.6kWh, perfectly adapting to various residential and commercial energy needs.
2. Premium LiFePO4 Cells with Long Lifespan
Built with high-quality Lithium Iron Phosphate (LiFePO4) battery cells, the system ensures superior safety and stability. It boasts an impressive cycle life of ≥6,000 cycles (at 0.2C, 95% DOD), guaranteeing reliable performance for over 5 years.
3. Robust Safety & Protection Systems
Safety is paramount. The system features a comprehensive protection level of IP20 and is equipped with an advanced Aerosol Fire Extinguisher system to prevent thermal runaway. Additionally, it includes built-in BMS protection and operates safely within a wide temperature range (-20°C to 55°C for discharging).
4. Wide Inverter Compatibility
The system offers seamless integration with a vast ecosystem of hybrid inverters. It supports standard communication protocols like CAN and RS485, ensuring compatibility with major brands such as Deye, Solis, Growatt, Sofar, GoodWe, Voltronic, and more.
5. Smart Monitoring & User Convenience
Stay in control with the Built-in WiFi Module and dedicated App (OTA function supported) for real-time remote monitoring. The stack-type installation design saves space and simplifies the setup process.
Brief selling points
Scalable Capacity: Supports 3-15 modules stacking (30.7 - 153.6kWh).
Long Cycle Life: ≥6,000 cycles @ 95% DOD (10+ Year Design Life).
High Safety Standard: Equipped with Aerosol Fire Extinguisher & IP20 Rating.
Broad Compatibility: Works with Deye, Solis, Growatt, Sofar, etc. (CAN/RS485).
Smart Connectivity: Built-in WiFi & App Support for Remote Monitoring.
Wide Temp Range: Discharging operation from -20°C to 55°C.
High Efficiency: 95% Depth of Discharge (DOD) maximizes usable energy.
Product Overview
Real-World Deep Dive & Technical Analysis
From a logistics and labor standpoint, this high voltage stackable system reduces hours of work during field commissioning. You do not have to deal with complex internal wiring or punch extra holes through metal cabinets. The modules feature a quick stack-type design where each 51.2V/205Ah block seats directly on top of the next one, instantly linking both the power terminals and communication plugs. At the brain of the cluster, HANO utilizes an intelligent Battery Management System (BMS) that speaks perfectly via CAN and RS485. This turns the entire unit into a highly versatile, multi inverter compatible battery that hooks up smoothly with the standard hybrid systems used across the globe today.
Key Features For Your Next Project
A lot of standard home batteries look great on paper but start losing their capacity after just a few years of heavy daily cycling. HANO relies on premium grade-A cell manufacturing to guarantee unlimited cycles under standard operating conditions (0.2C charge/discharge at 25°C with a 95% DOD) across a 10-year design life. Even if your customers run the system hard with heavy continuous charging and discharging up to 200A (1C rate), these internal cells resist degradation beautifully, protecting your customer's long-term investment.
2. Hassle-Free Inverter Protocol Syncing
Target Commercial Applications
Direct Business and Financial Value
