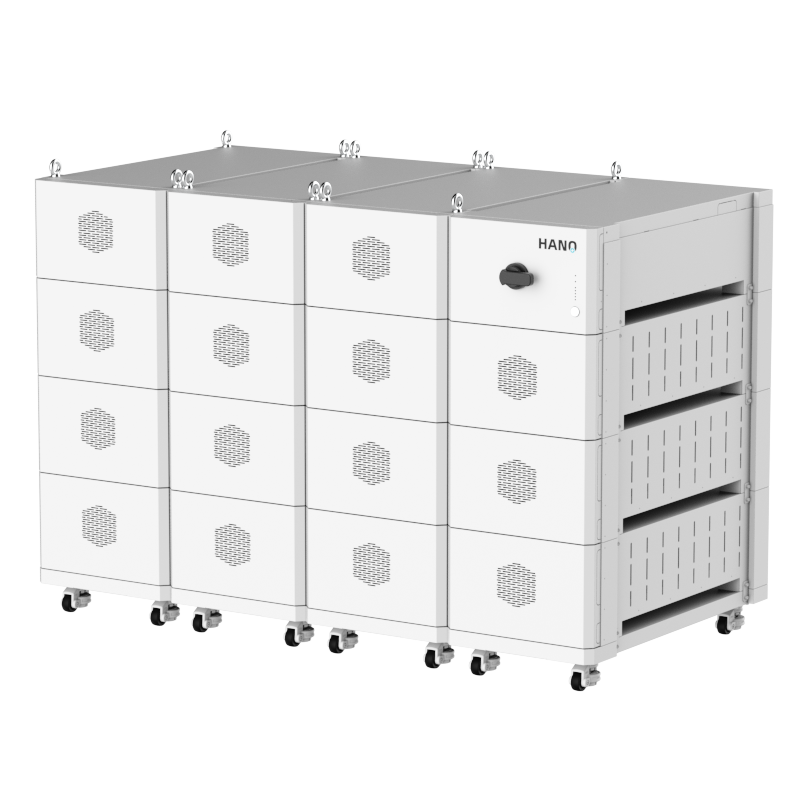

HANO HN-HVS16 48.2kWh-241.1kWh Stackable High Voltage Residential Energy Storage System

HANO HN-HVS16 48.2kWh-241.1kWh Stackable High Voltage Residential Energy Storage System

Scalable Capacity: Supports 3-15 modules stacking (30.7 - 153.6kWh).
Long Cycle Life: ≥6,000 cycles @ 95% DOD (10+ Year Design Life).
High Safety Standard: Equipped with Aerosol Fire Extinguisher & IP20 Rating.
Broad Compatibility: Works with Deye, Solis, Growatt, Sofar, etc. (CAN/RS485).
Smart Connectivity: Built-in WiFi & App Support for Remote Monitoring.
Wide Temp Range: Discharging operation from -20°C to 55°C.
High Efficiency: 95% Depth of Discharge (DOD) maximizes usable energy.

Overview
Recommended Products

Model	HN-HVS16
Battery Type	LiFePO4
Module Voltage/Capacity	51.2V/314Ah
Single Module Weight	135Kg
System Modules Serial Number	3~15
System Energy Range	48.2~241.1kWh
Operating Voltage	134~864V
Recommended Charge/Discharge Current	150A (0.5C)
Max.Charge/Discharge Current	200A (0.6C)
Peak Discharge Current(2min 25°C)	220A(0.7C)
Depth of Discharge	95%
Communication	CAN/RS485
Cycle Life *	Unlimited cycles / 10 Years
*Max. Single Cluster Dimension(WDH)(mm)*	1760 / 845 / 1200~15 module
Charging Temp. Range	0~55°C
Discharging Temp. Range	-20~55°C
Protection Level	IP20
Fire Protection System	Aerosol fire extinguisher
Installation method	Stack type
Cooling method	FAN
WiFi Module	Built-in WiFi module; APP OTA function
Certification & Safety Standard	CE/ IEC62619 / IEC62040/UN38.3
Compatible Inverters	Ingeteam/Solis/GoodWe/Growatt/Solplanet/SAJ/DEYE/Hoymiles/SOLINTEG ect.
* Test conditions: 0.2C Charging & Discharging. @25°C; 95% DOD

Detailed selling points
1. Flexible High-Voltage Stacking Architecture
Designed for scalability, the system supports stacking 3 to 15 modules. This allows users to freely customize their energy storage capacity ranging from 48.2 kWh up to 241.1kWh, perfectly adapting to various residential and commercial energy needs.

2. Premium LiFePO4 Cells with Long Lifespan
Built with high-quality Lithium Iron Phosphate (LiFePO4) battery cells, the system ensures superior safety and stability. It boasts an impressive cycle life of ≥6,000 cycles (at 0.2C, 95% DOD), guaranteeing reliable performance for over 5 years.

3. Robust Safety & Protection Systems
Safety is paramount. The system features a comprehensive protection level of IP20 and is equipped with an advanced Aerosol Fire Extinguisher system to prevent thermal runaway. Additionally, it includes built-in BMS protection and operates safely within a wide temperature range (-20°C to 55°C for discharging).

4. Wide Inverter Compatibility
The system offers seamless integration with a vast ecosystem of hybrid inverters. It supports standard communication protocols like CAN and RS485, ensuring compatibility with major brands such as Deye, Solis, Growatt, Sofar, GoodWe, Voltronic, and more.

5. Smart Monitoring & User Convenience
Stay in control with the Built-in WiFi Module and dedicated App (OTA function supported) for real-time remote monitoring. The stack-type installation design saves space and simplifies the setup process.

Brief selling points

Product Brief Introduction

The HANO HN-HVS16 Stackable High Voltage Residential Energy Storage System is the definitive upgrade path for modern grid infrastructure challenges. Engineered specifically as an enterprise-grade High Voltage Stackable System, the HANO HN-HVS16 empowers commercial solar distributors and EPC teams to customize operating capacities from 48.2kWh up to an expansive 241.1kWh. Utilizing heavy-duty LiFePO4 Residential Battery Storage cells rated at 51.2V 314Ah, this High Capacity Scalable ESS eliminates parallel distribution losses completely. Packed with an integrated Aerosol Fire Suppression Battery core and flexible Multi Module Battery Cluster matching properties, it provides an out-of-the-box answer for long-term Commercial and Residential Energy Backup deployments worldwide.

Comprehensive Product Description

Sourcing clean energy assets that keep up with heavy inductive peak loads is a serious challenge for modern installation networks. HANO built the HANO HN-HVS16 Stackable High Voltage Residential Energy Storage System to resolve common low-voltage pain points such as excessive line heating and tedious intra-cabinet cabling. By linking 3 to 15 high-capacity 314Ah modules vertically, this elite High Voltage Stackable System achieves a high operating voltage scope spanning from 134V up to 864V. This engineering approach maps directly onto the high-voltage DC busway of leading hybrid inverters, boosting whole-system round-trip power efficiency while minimizing unnecessary thermal conversion stress.

Logistics and installation teams will find this High Capacity Scalable ESS to be a true on-site labor cost saver. Each solid 135Kg block locks into place using quick-connect pluggable links, removing the need for manual copper crimping. Built with ultra-stable LiFePO4 Residential Battery Storage core balance mechanics, HANO ensures reliable performance across wide temperature boundaries. The central unit includes a robust built-in WiFi system and native CAN/RS485 data paths, enabling your service desk to execute remote diagnostic tasks and deploy over-the-air OTA firmware revisions easily.

Key Structural Features

Flexible Stacking Matrix: Supports stacking 3 to 15 modules in series. This gives installation teams total freedom to configure scalable capacity from 48.2kWh up to 241.1kWh using a single product line, simplifying local SKU management.

High-Capacity LiFePO4 Chemistry: Incorporating lithium iron phosphate technology, this LiFePO4 Residential Battery Storage unit easily registers over 6,000 deep cycles at a continuous 95% Depth of Discharge floor.

Built-in Safety Matrix: The IP20-rated casing houses an active automated Aerosol Fire Suppression Battery package. This mechanism smothers potential thermal runaway at the cell level before any risk spreads.

Clean Assembly: The smart stack footprint saves premium ground space, allowing quick deployment inside electrical rooms without complex structural framing.

Technical Advantages & Deep Expert Analysis

To appreciate why the HANO HN-HVS16 Stackable High Voltage Residential Energy Storage System outperforms traditional setups, look at the math behind thermal dissipation. According to Joule's Law , pushing high power at low voltage demands high current, causing severe line resistance losses. By stepping up system voltage through a High Voltage Stackable System, HANO keeps the current stream tight. This design handles a standard continuous current of 150A (0.5C) and a peak discharge threshold of 220A (0.7C) for up to 2 minutes at 25°C. This 2-minute peak buffer provides vital transient starting current for heavy inductive loads, such as central HVAC units or agricultural pumps, without tripping internal circuit breakers.

Furthermore, while basic battery solutions limit you to an 80% discharge limit, HANO provides a solid 95% Depth of Discharge. This provides 15% more active energy capacity from identical physical dimensions. Backed by a 10-year unlimited-cycle design lifespan under standard testing conditions, this High Capacity Scalable ESS brings down the levelized cost of storage, delivering a reliable financial asset for microgrid developers.

Target Scenario Applications

Commercial and Residential Energy Backup: Ideal for multi-family complexes, large custom estates, and commercial offices looking to cut utility demand charges and increase local self-consumption rates.

Unstable Remote Microgrids: Delivers a reliable power backbone for remote eco-lodges, island facilities, and rural agricultural water pumps where utility grids are completely absent or unstable.

Industrial Peak Shaving: Enables workshop operations to charge the Multi Module Battery Cluster during cheap off-peak nighttime hours and discharge during premium tariff slots, lowering monthly operational overhead.

B2B Commercial Value

For distributors and EPC contractors, inventory management determines profit margins. Stocking the HANO HN-HVS16 Stackable High Voltage Residential Energy Storage System cuts the need to manage various standalone battery variants. This flexible High Voltage Stackable System addresses large home back-ups and small commercial projects with identical parts, streamlining your supply chain overhead.

Because HANO built this as a highly open-protocol architecture, it syncs seamlessly with premier hybrid inverter lineups including Ingeteam, Solis, GoodWe, Growatt, Solplanet, SAJ, Deye, Hoymiles, and Solinteg. Supported by CE, IEC62619, and UN38.3 records, HANO ensures rapid import clearances, helping you close large Commercial and Residential Energy Backup deals with complete peace of mind.
